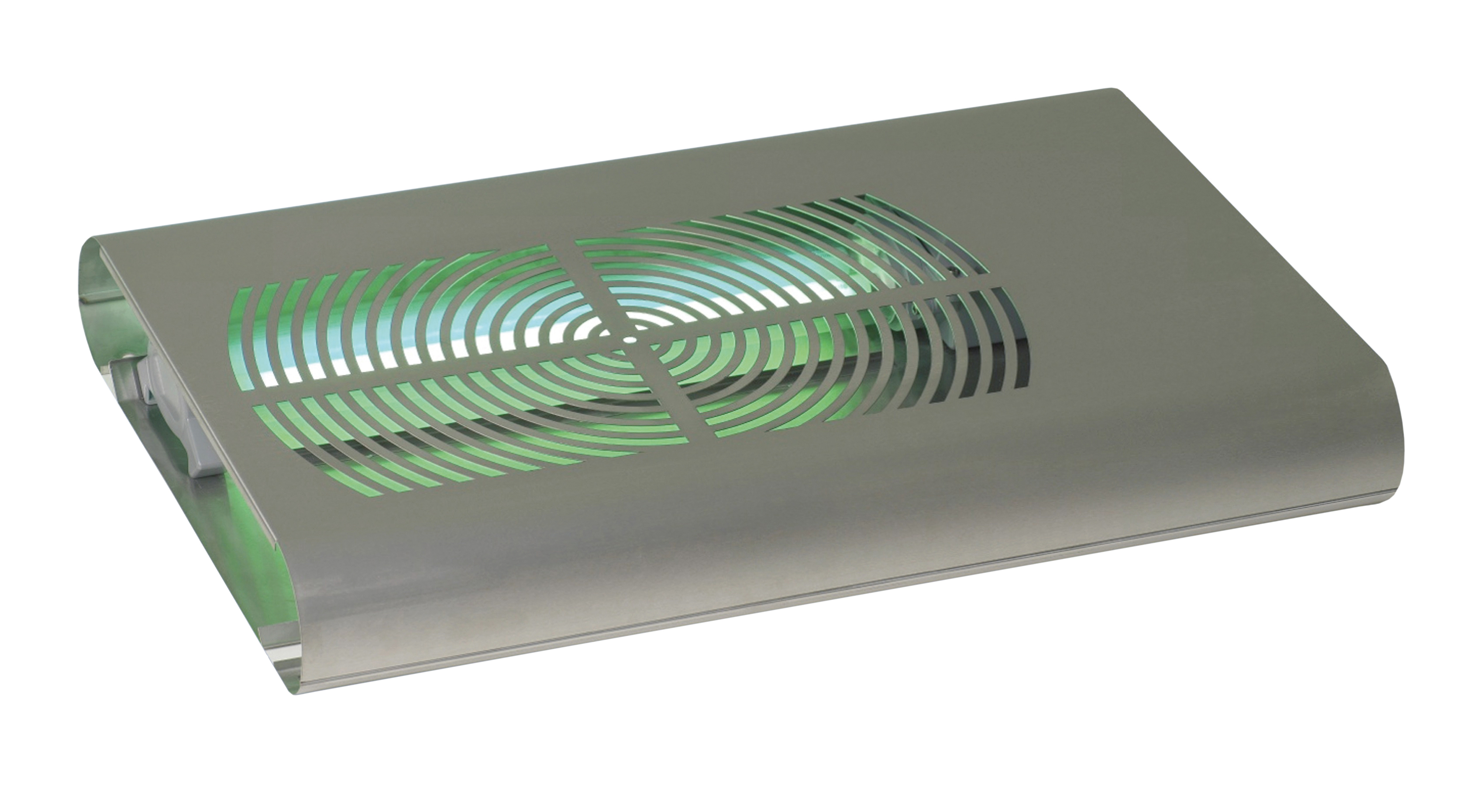

I-TRAP 150EX


The ATEX 95 rated 150 m² wall mounted insect control unit

With its robust design, the i-trap 150EX is recommended for use in
areas with a potential danger of a gas explosion or a dust
explosion.

The unit can be wall mounted. The i-trap 150EX has a specially
designed front grid which optimizes the attraction potential.
This grid is made of stainless steel.

Once the insects enter the i-trap, they will be effectively controlled
by means of a centrally placed glue board.

Easy to service, robust and effective;
the i-trap 150EX offers it all.


TECHNICAL SPECIFICATIONS

Area coverage
Light source
Type of UV lamps
Electrical supply
Catch specifications
Power consumption
Weight
Material
Degree of protection
Guarantee
Int. building norm
Lamp life time
Dimensions (LxHxD)
CE-approval
Mounting position
Cable & plug
Complies to norm
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
100 - 150m²  effective coverage
2 x 18 Watt shatterproof Philips Longlife UV-A lamps
UV-A Lamp RoHS certified
220-240V ~ 50Hz
By means of effective glue board
45 Watt
8 Kg
Metal housing
IP 68 (hose proof)
1 year return to base
acc. IEC 60.335-259 int. standard for insect exterminators
17,500 hrs (*)
940 x 600 x 140 mm
Yes
Wall mounted
Not included in scope of supply
II 2GD EEx em II T4 (Zone 1 & 2 for gas, zone 21 & 22 for dust)
(*) After 17,500 hours of use, the Longlife lamp still offers 75% of its initial UV-A output value
