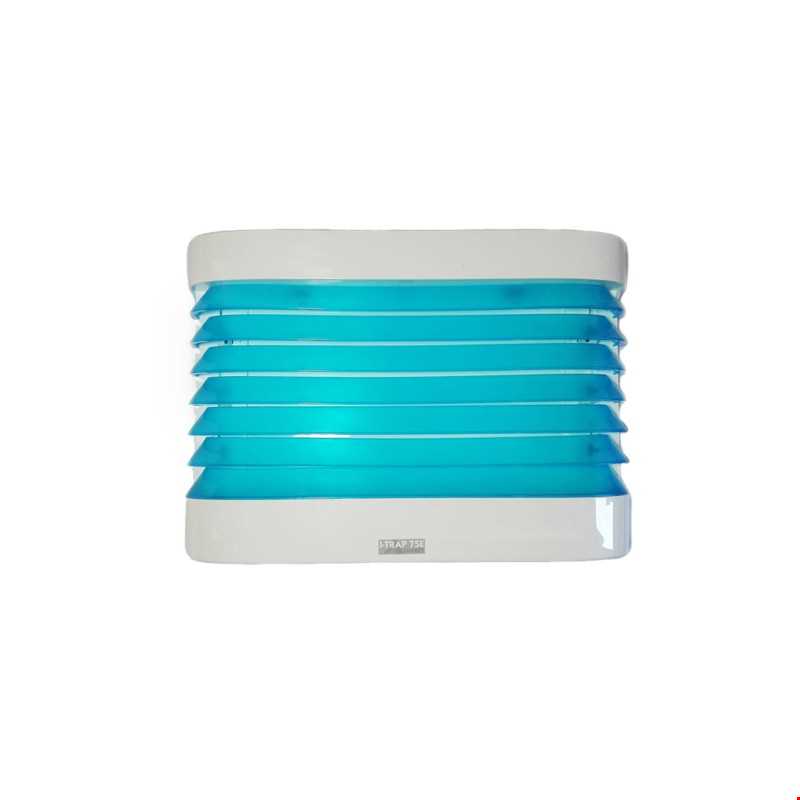

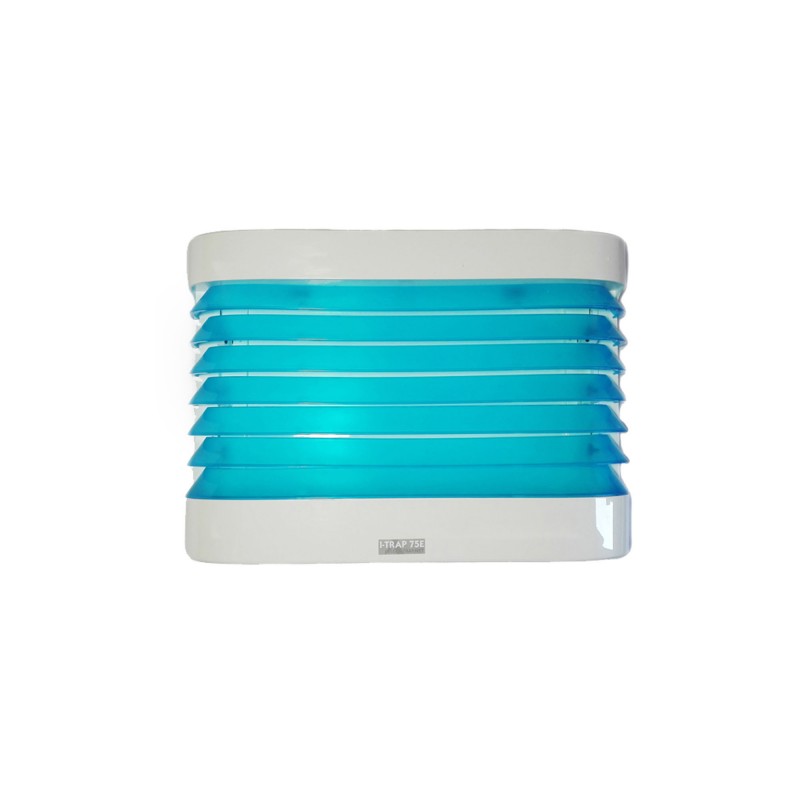

I-TRAP 75E


THE DISCRETE 120 M2 WALL MOUNTED INSECT CONTROL UNIT

With its innovative design, the i-trap 75E is recommended for use in homes, offices, shops and restaurants. The i-trap has a specially designed front grid which optimizes the attraction potential.

The cover/grid is made of ABS plastic and the casing of coated steel. Once the insects enter the i-trap, they will be effectively controlled by means of a centrally placed glue board.

Easy to service, stylish and effective; the i-trap 75 offers it all.


TECHNICAL SPECIFICATIONS


Area coverage (m²)
Light source
Type of UV lamps
Electrical supply (V)
Catch specifications
Power consumption
Weight (kg)
Material
Degree of protection
Guarantee
Int. building norm
Lamp life time (h)
Dimensions (L x D x H)
CE-approval
Mounting position
Cable & plug
Packging
Manual:
Service
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
120 m² (1250 ft²)
3 x 15 watt Philips Long-life shatterproof UV-A
UV Lamps RoHS certified
110-240V ~ 50/60Hz
By means of Temperature Optimized Glueboard
49 W
6
Coated steel casing, cover/grid ABS plastic
IP20 (Safe to use in dry environments)
2 years return to base
acc. EN 60335-2-59 int. std. for insect traps
17.500*
520 x 150 x 365 mm (20 x 6 x 13,5 inches)
Yes
Wall mounted
Included
Strong cardboard box
Enclosed with the unit in English
Unit can be serviced without special tools
(*) After 17,500 hours of use, the Longlife lamp still offers 75% of its initial UV-A output value.
