I-TRAP 35


THE DISCRETE 35 M² WALL MOUNTED INSECT CONTROL UNIT

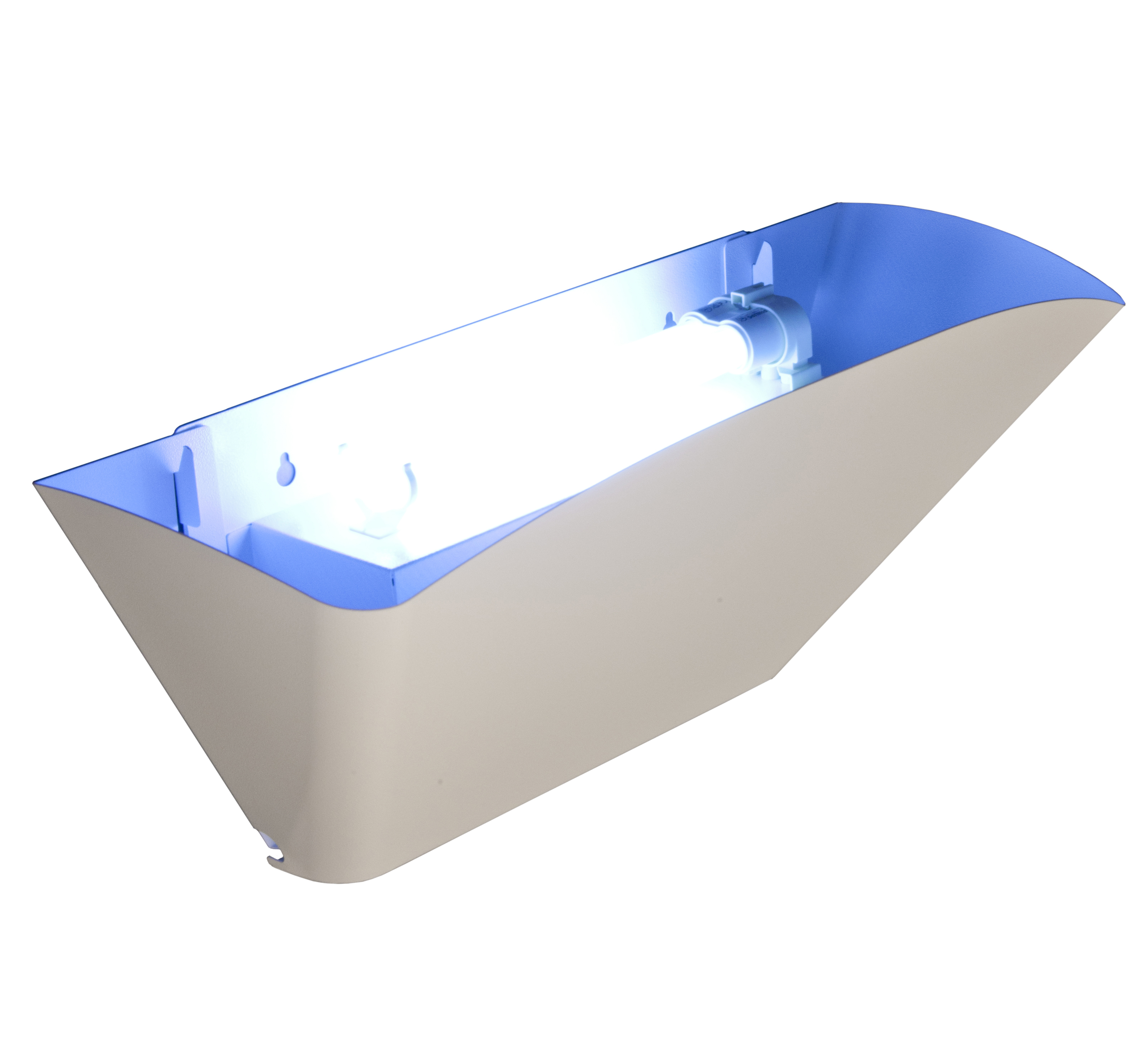

With its innovative design, the i-trap 35 is recommended for use in homes, offices, shops and restaurants. The i-trap is constructed in such a way that the UV-A light is directed upwards.
The i-trap 35 has an all metal housing and uses a powerful UV-A lamp to lure insects into its trap. Once these insects enter the unit, they are effectively controlled with a glue board trap.
Easy to service, stylish and effective; the i-trap 35 offers it all.

TECHNICAL SPECIFICATIONS

Area coverage
Light source
Type of UV lamps
Electrical supply
Catch specifications
Power consumption
Weight
Material
Degree of protection
Guarantee
Int. building norm
Lamp life time
Dimensions (LxWxD)
CE-approval
Mounting position
Cable & plug
Service
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
35 m²  effective coverage
1 x 18 Watt UV-A lamp
UV-A Lamp RoHS certified
220-240V ~ 50Hz, other voltages upon request
By means of effective glue board
25 Watt
3 Kg
Metal housing
IP 21 (drip proof)
2 year return to base
acc. IEC 60.335-259 int. standard for insect exterminators
9000 hrs
440 x 190 x 200 mm
Yes
Wall mounted
Included
Unit can be serviced without special tools
