Products

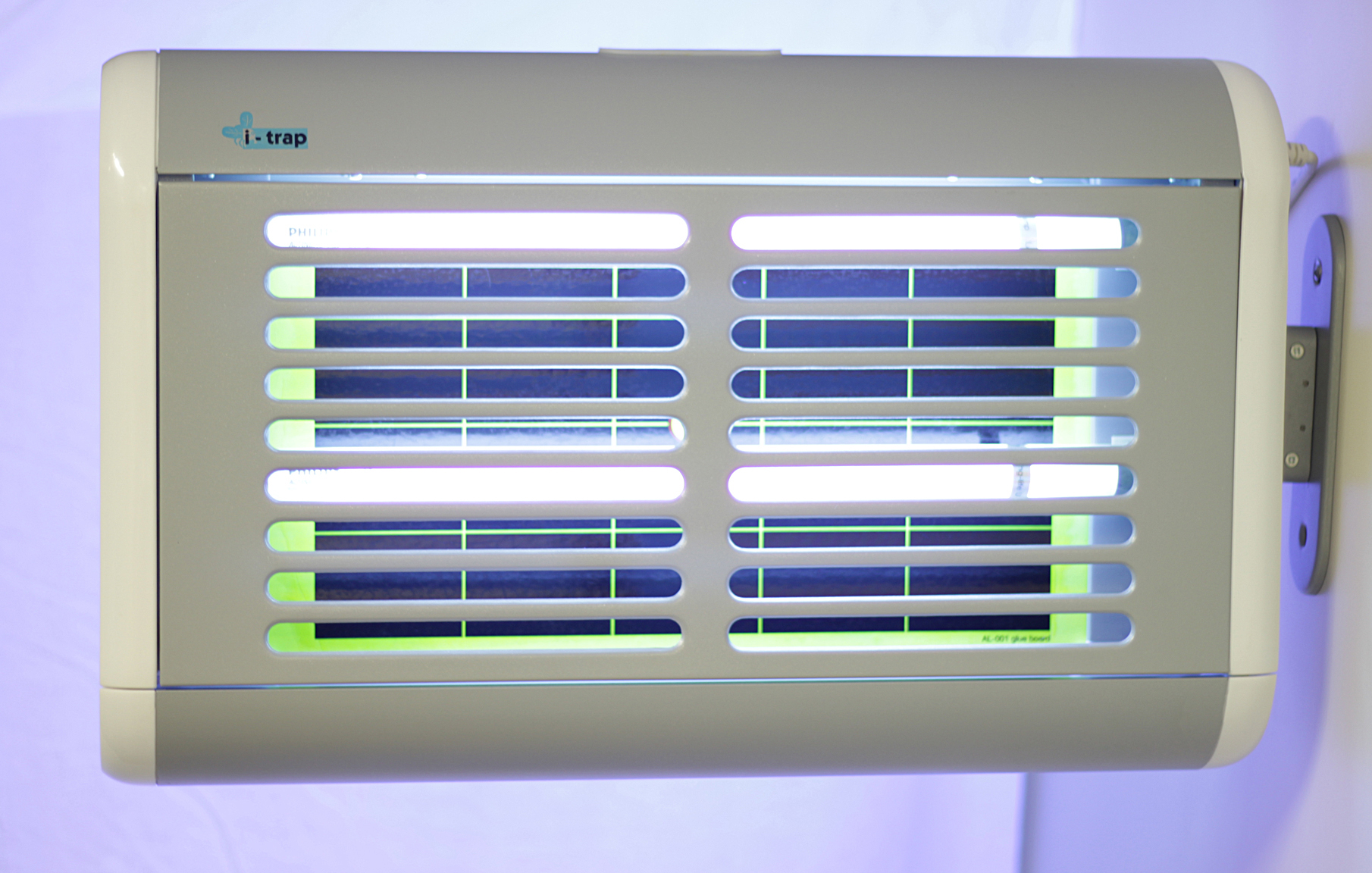

I-TRAP 100E


THE ROBUST 100 M² FLAG OR CEILING MOUNTED INSECT CONTROL UNIT

With its robust design, the i-trap 100E is recommended for use in professional or industrial environments.  The i-trap can be flag
mounted on the wall or ceiling mounted. Mounting is a breeze with
the snap-on mounting bracket.
The i-trap 100E has an aluminium housing, which makes the unit
both light and strong. Once the insects enter the i-trap, they will be
effectively controlled by mean of a centrally placed glue board.
Easy to service, robust, yet elegant and effective;
the i-trap 100E offers it all.


TECHNICAL SPECIFICATIONS

Area coverage
Light source
Type of UV lamps
Electrical supply
Catch specifications
Power consumption
Weight
Material
Degree of protection
Guarantee
Int. building norm
Lamp life time
Dimensions (LxWxD)
CE-approval
Mounting position
Cable & plug
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
100 m2 effective coverage
4 x 15 Watt shatterproof Philips Longlife UV-A lamps
UV-A Lamp RoHS certified
110-240V ~ 50/60Hz
By means of effective glue board
65 Watt
6 Kg
Metal housing
IP 20
2 year return to base
acc. IEC 60.335-259 int. standard for insect exterminators
17,500 hrs (*)
580 x 360 x 150 mm
Yes
Wall, flag or ceiling mounted
Included

(*)After 17,500 hours of use, the Longlife lamp still offers 75% of its initial UV-A output value
